Project: Villa Boucetta | New Custom Home Construction
Location: Indio, California
Builder: Tenax Construction Inc. — CA Lic #1057033
Project Type: New Construction — ICF (Insulated Concrete Form) Single-Family Luxury Residence
Status: 🔄 Currently Under Construction — Updates Below
Building a Legacy: The Villa Boucetta Project
At Tenax Construction, every project tells a story — but few tell it as boldly as Villa Boucetta. Nestled in the sun-drenched desert landscape of Indio, California, this landmark luxury residence is redefining what custom home construction looks like in the Coachella Valley. From the first excavation cut to the final concrete pour, Villa Boucetta is a testament to precision engineering, architectural ambition, and the kind of craftsmanship that only comes from a team that refuses to compromise.
This is not a standard build. Villa Boucetta is a fully custom, Insulated Concrete Form (ICF) single-family home — a construction method that delivers superior structural integrity, unmatched energy efficiency, and extraordinary design flexibility. With sweeping radius walls, multi-tiered stepped footings, elevated Insul-Deck floor systems, and architectural concrete staircases, this project represents the pinnacle of what modern residential construction can achieve.
Why ICF Construction? The Technology Behind Villa Boucetta
Insulated Concrete Form (ICF) construction is the gold standard for high-performance residential building — and it’s at the heart of everything we’re doing at Villa Boucetta.
What Is ICF?
ICF walls are built using interlocking foam forms that are stacked, reinforced with steel rebar, and then filled with poured concrete. The foam stays in place permanently, acting as continuous insulation on both sides of the concrete core. The result is a wall system that is:
- Up to 9x stronger than traditional wood-frame construction
- 50–70% more energy efficient, dramatically reducing heating and cooling costs in the extreme Coachella Valley climate
- Highly resistant to fire, wind, pests, and moisture
- Acoustically superior, providing exceptional sound dampening
- Architecturally versatile, allowing for complex curves, radius walls, and custom geometries
For a luxury home in the desert, where summer temperatures regularly exceed 115°F, ICF isn’t just a premium choice — it’s the smart one.
Project Scope: What We’re Building
Villa Boucetta is a comprehensive, ground-up construction project encompassing multiple complex trades and systems. Here’s a breakdown of the major scopes of work:
Site Work & Well Drilling
Before a single wall goes up, the land must be prepared. Our site work scope includes the complete permitting process, municipal coordination, and the installation of a private water well drilled to a depth of up to 600 feet.
Key highlights:
- Borehole up to 16″ in diameter
- 400 feet of 8″ blank casing + 200 feet of 8″ screen
- 23 tons of select gravel filter pack
- High-performance 10 HP submersible pump with 189′ of column assembly
- Deluxe control box system (230V single phase)
- Sanitary cement slurry seal to protect groundwater integrity
This self-sufficient water system ensures Villa Boucetta has a reliable, independent water supply — a critical asset for a luxury desert estate.

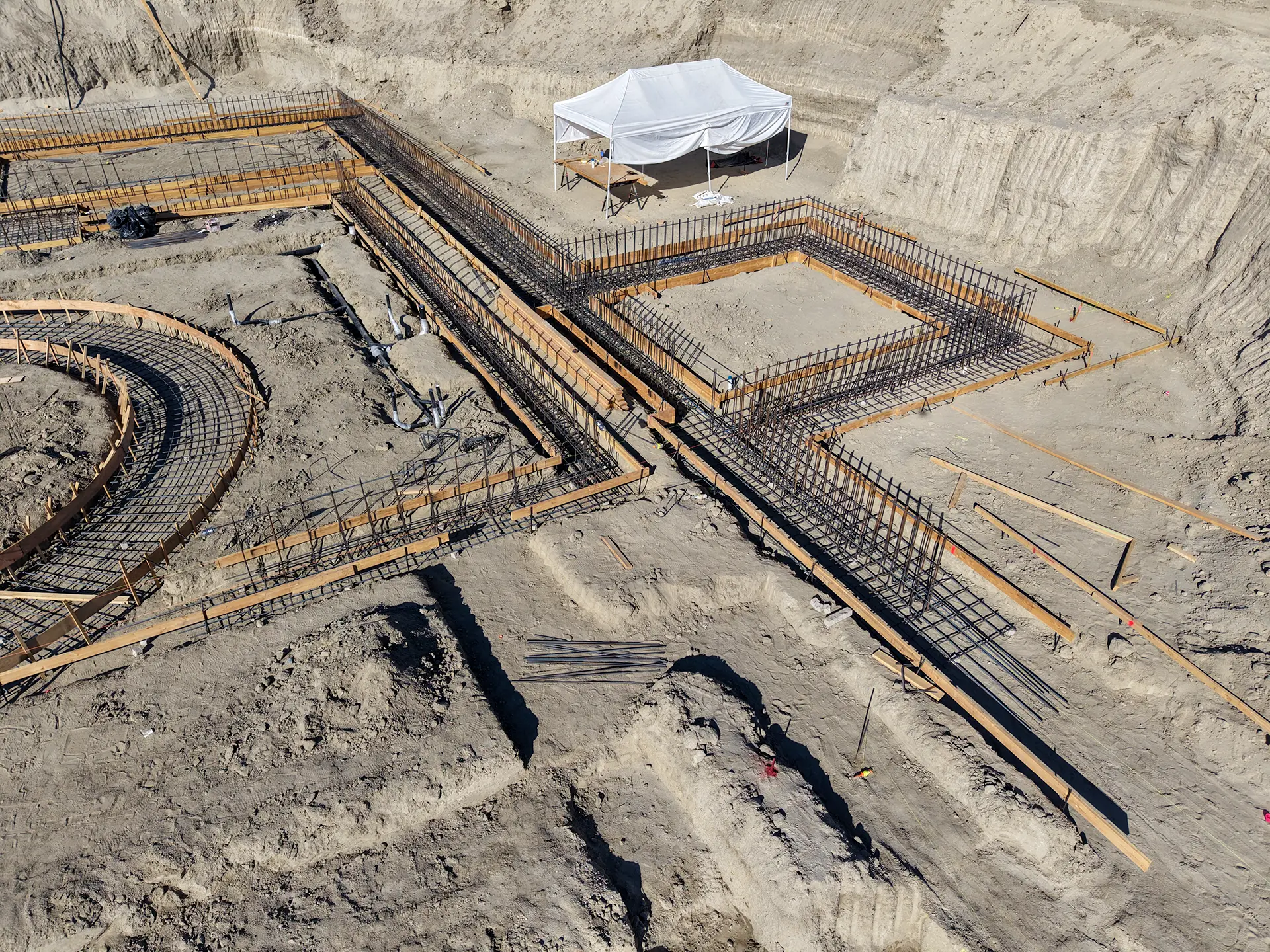

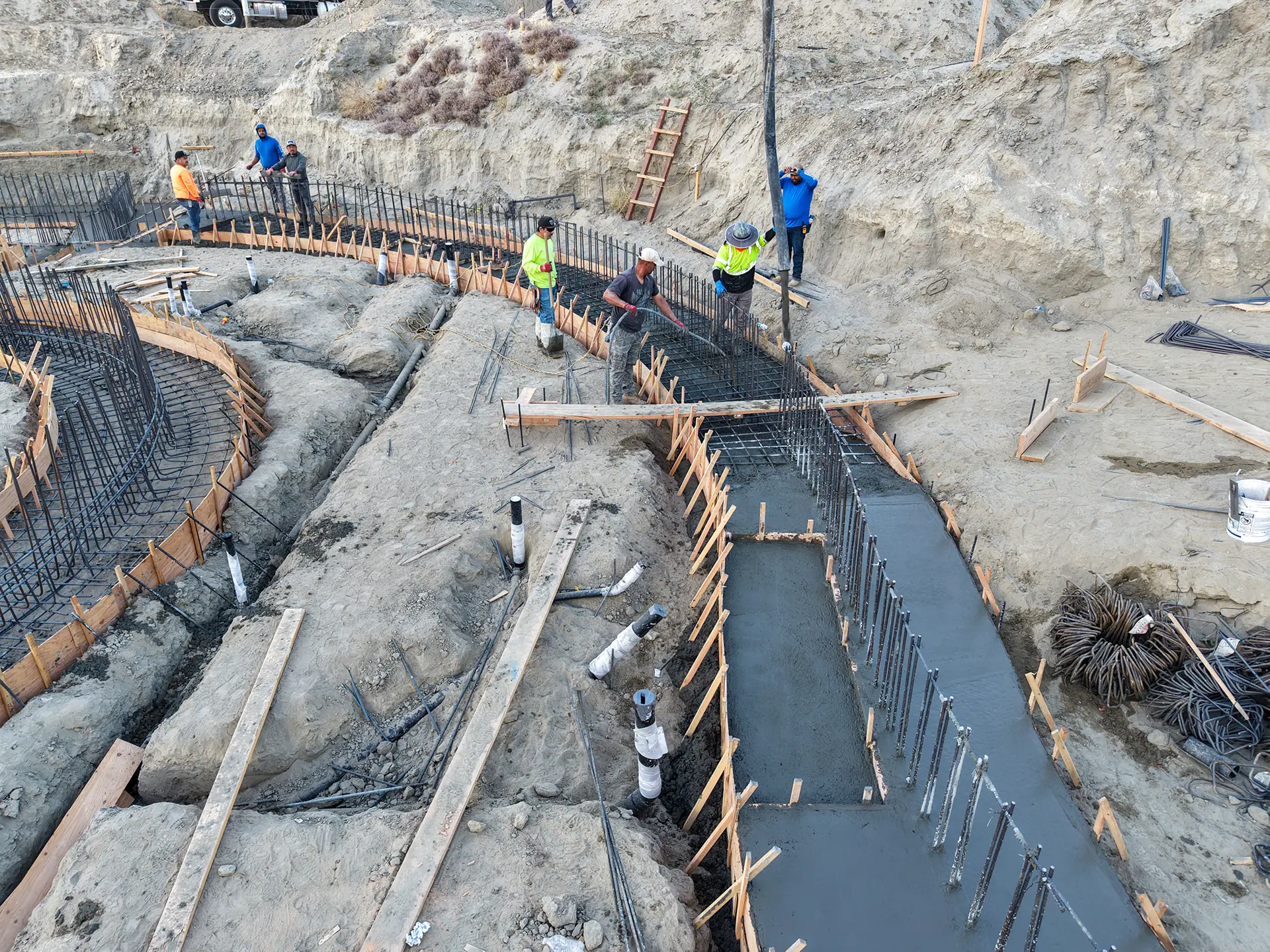

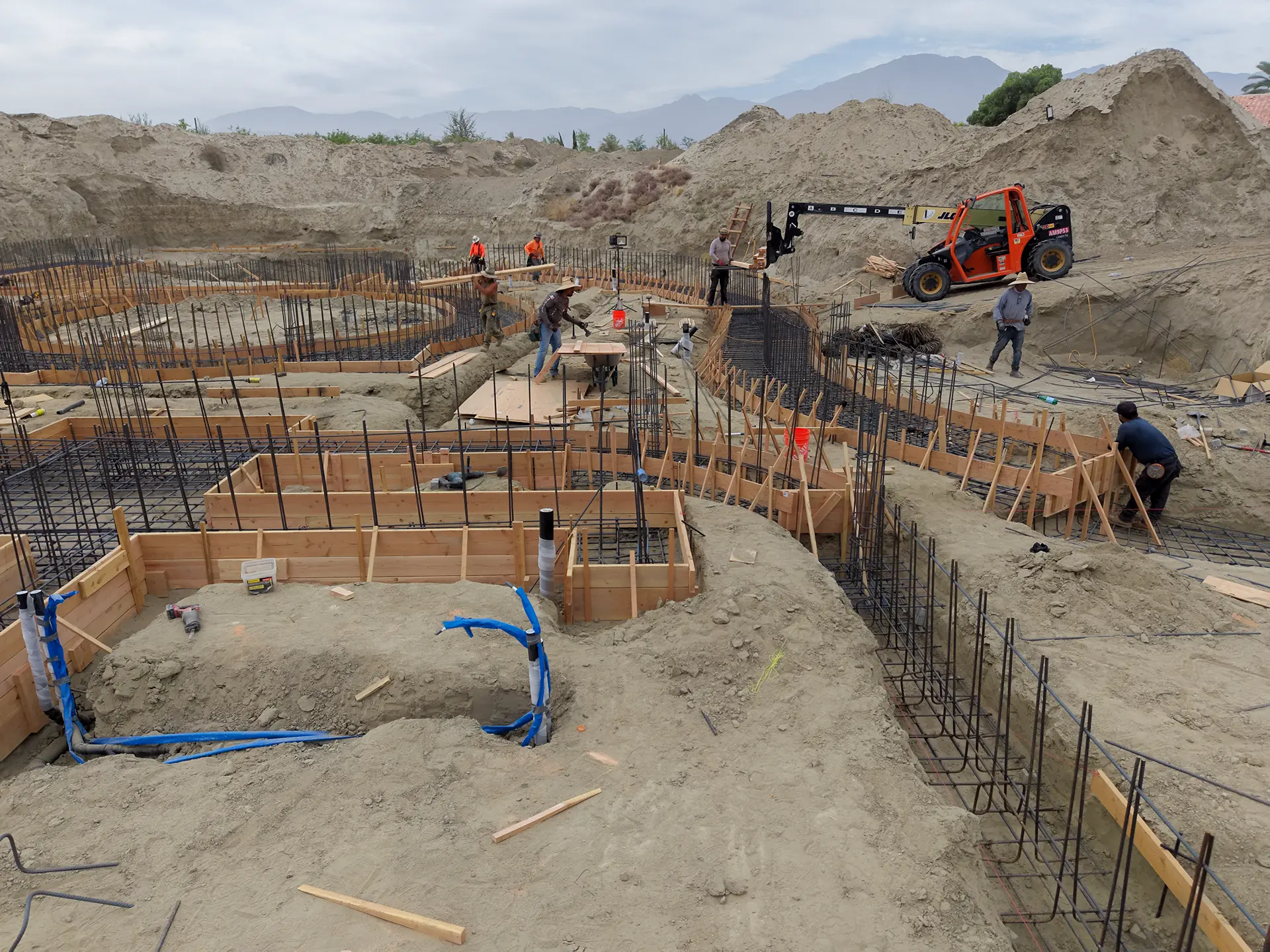

Concrete Footings — The Foundation of Everything
The foundation of Villa Boucetta is anything but simple. The site’s natural grade changes required the engineering and execution of stepped footings — a complex system of reinforced concrete transitions that navigate multiple vertical elevations while maintaining a continuous structural load path.
Our footing scope includes:
- Precision layout and transit leveling at every elevation change

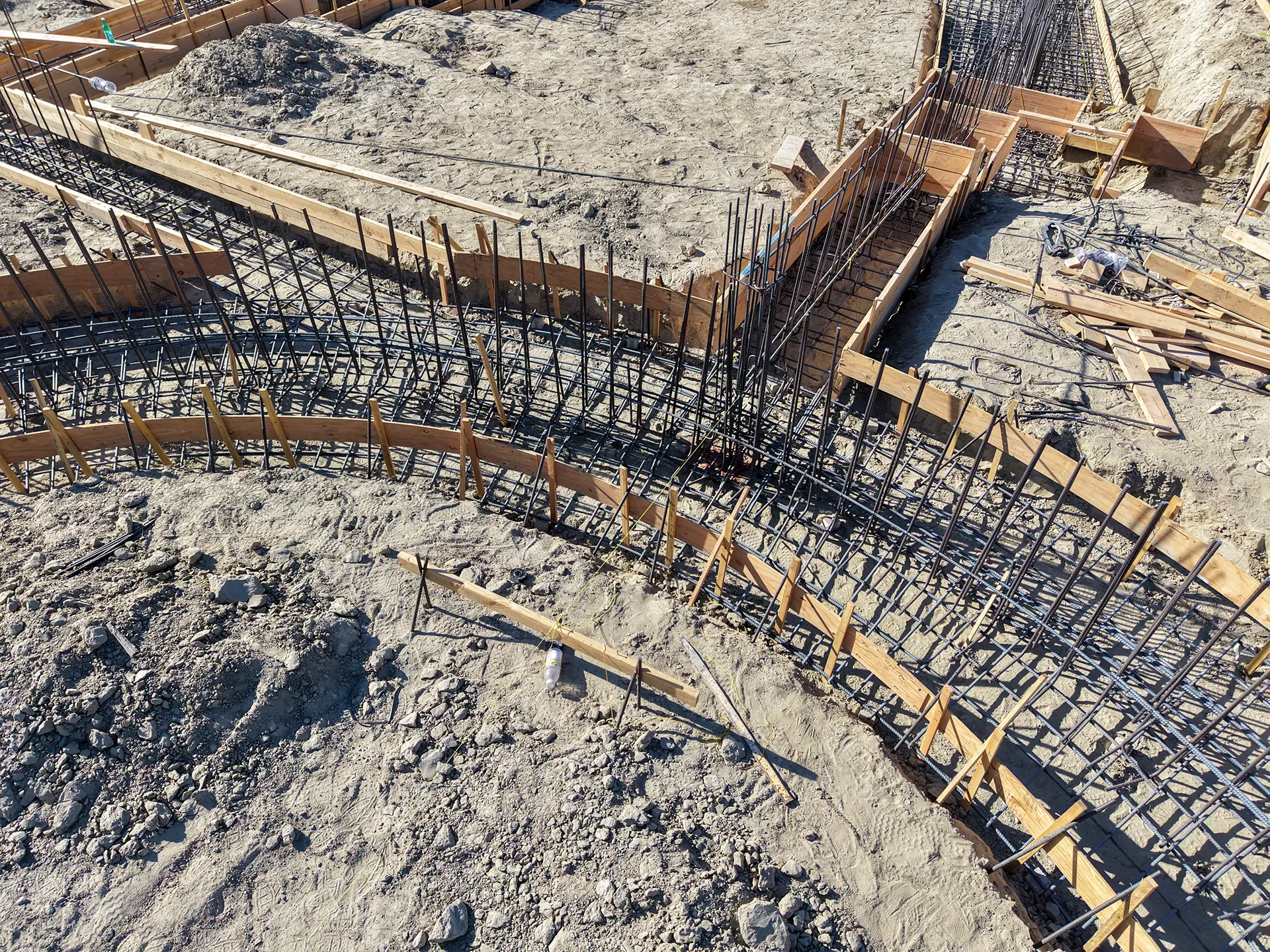

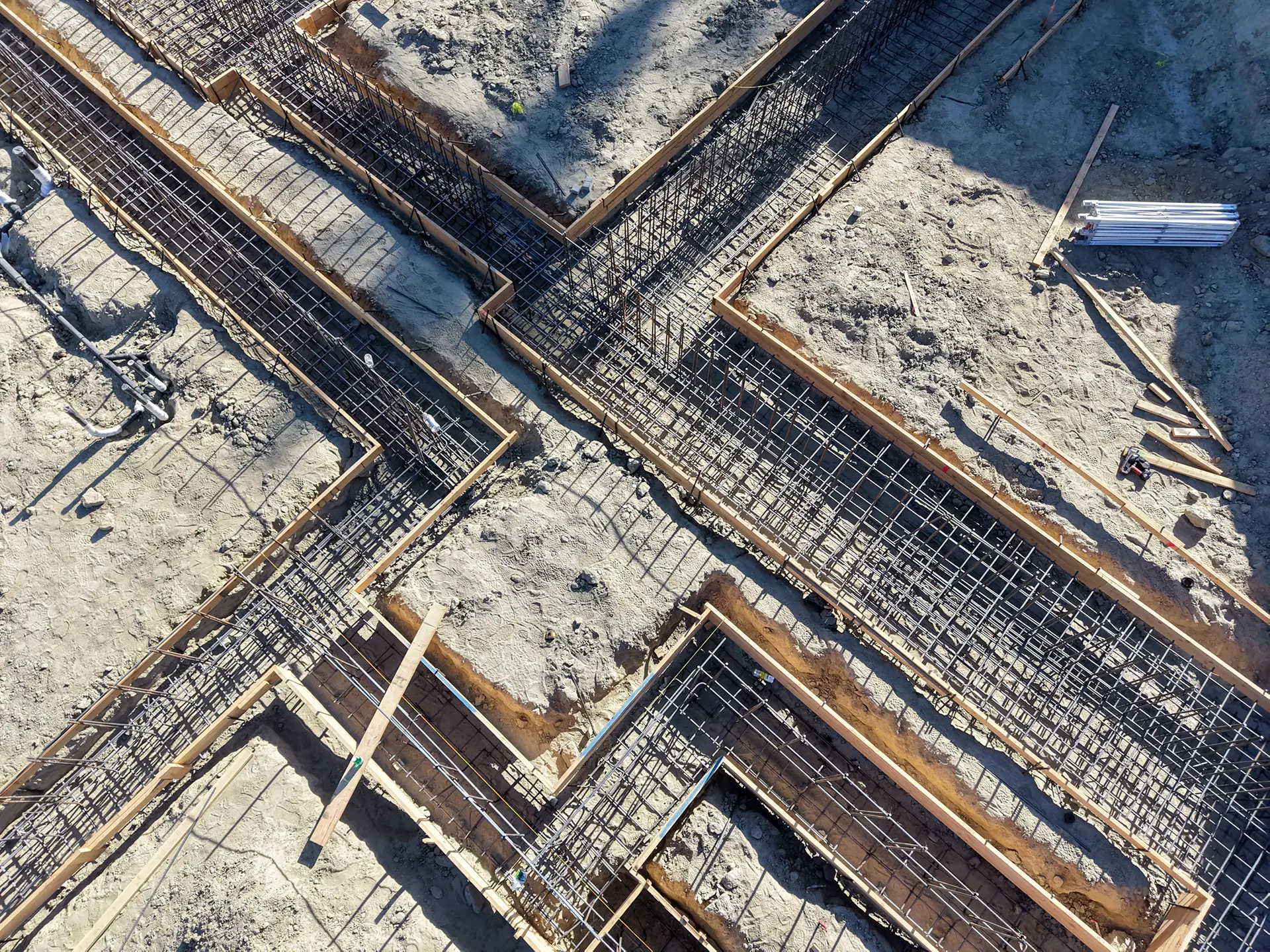

- Reinforced stepped footing transitions with full rebar detailing
- Phased concrete placement with strategic pump truck positioning

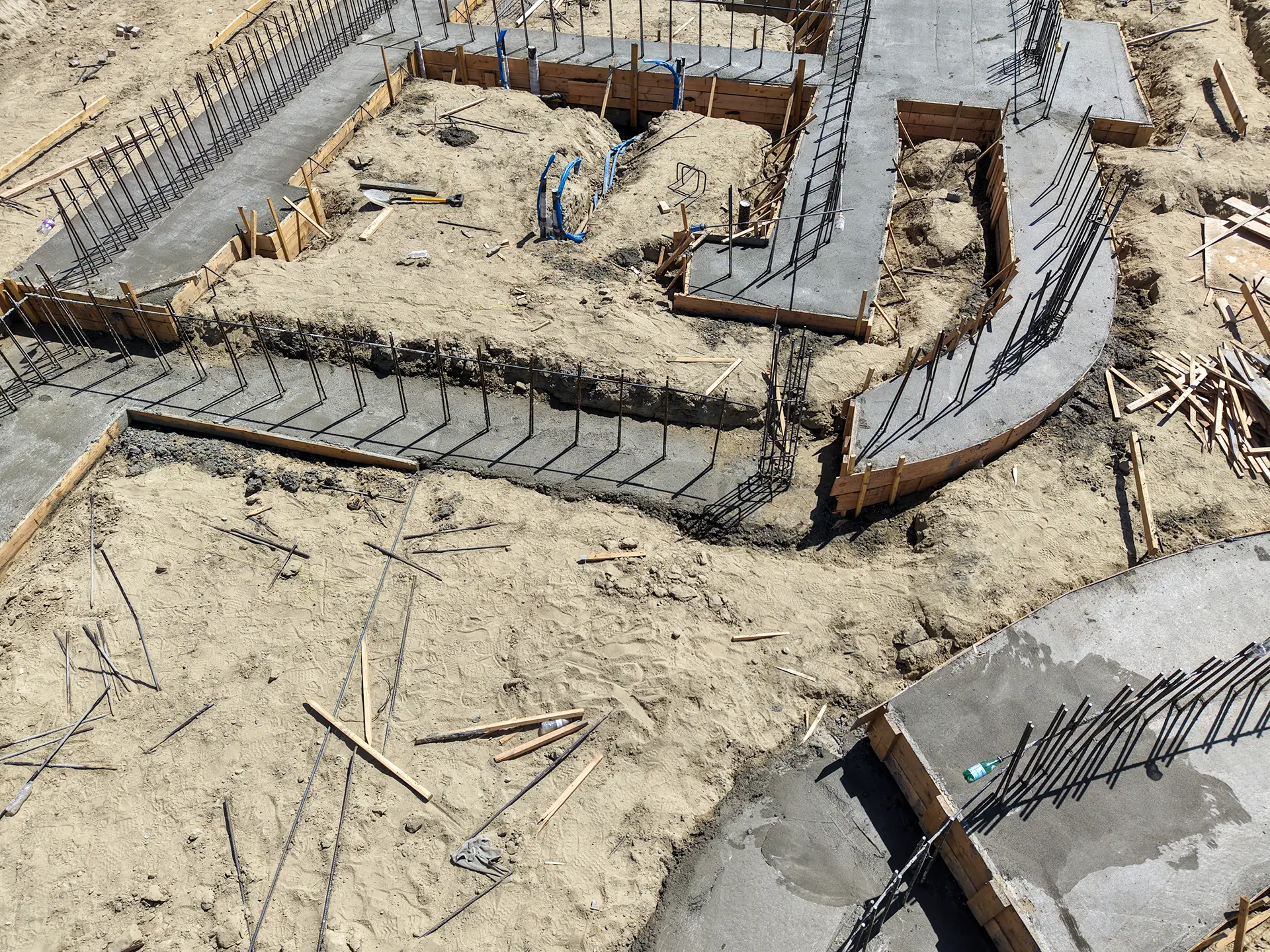

- Vertical dowel installation for ICF wall integration
- Excavation, trenching, compaction, and formwork
Every footing is engineered to carry the full weight of an ICF structure — a significantly heavier and more demanding load than conventional wood-frame construction.
ICF Concrete Walls — Where Architecture Meets Engineering
This is where Villa Boucetta truly distinguishes itself. The ICF wall system features custom radius walls — sweeping curves that give the home its distinctive architectural character. Executing radius ICF walls requires a level of skill and precision that very few contractors in California can deliver.
Our ICF wall scope includes:
- Precision layout of all wall lines with custom radius point calculations
- Fabrication and bracing of radius ICF blocks with specialized strapping
- Varying core management at wall thickness transitions
- Full structural rebar grid per engineered schedule
- Congestion management at radius corners, lintels, and T-junctions
- Integration of all MEP (mechanical, electrical, plumbing) penetrations prior to pour
- Comprehensive vertical bracing and alignment system
- Phased “lift” pours to manage lateral pressure on forms
- Small-diameter mechanical vibration for full concrete consolidation
The result is a wall system that is simultaneously a structural marvel and an architectural statement.
Waterproofing System
A luxury home is only as good as its protection against the elements. Villa Boucetta features a comprehensive below-grade waterproofing system using Nudura-approved materials and a multi-layer drainage strategy:
- High-strength non-shrink structural grout at ICF-footing interface
- Nudura Self-Adhesive Waterproofing Membrane (peel-and-stick)
- High-compression dimpled drainage board
- Perforated PVC drain pipe with geotextile filter fabric
- Clean #57 washed stone drain rock (12″–24″ coverage)
- “Chimney drainage” vertical stone column to within 12″ of final grade
This system ensures that Villa Boucetta’s foundation remains dry and protected for generations.
Insul-Deck Elevated Floor System
Villa Boucetta is a multi-story residence, and the elevated floor system is as sophisticated as the walls below it. We’re using Insul-Deck — an EPS (expanded polystyrene) stay-in-place forming system for elevated concrete slabs — which provides exceptional thermal performance and structural efficiency.
Scope highlights:
- Heavy-duty post-shore and stringer shoring system
- Custom-cut EPS panel placement for joist and slab formwork
- Radius perimeter forming with specialized kerfed edge forms
- Complex hidden beam pockets per structural engineer specifications
- Radius beam rebar fabrication for curved wall lines
- Grade 60 rebar in joist pockets + structural mesh in top slab
- Monolithic ICF-to-Insul-Deck connection for maximum lateral stability
- MEP coordination for conduits, plumbing stacks, and floor boxes
- Controlled pump placement with mechanical vibration and trowel finish
Architectural Concrete Staircases
Few elements in a luxury home make a statement like a grand staircase — and at Villa Boucetta, the stairs are pure architectural sculpture. These are custom-formed, reinforced concrete staircases with complex radius geometries, structurally integrated with both the ICF walls and the Insul-Deck floor system.
Key elements:
- Custom template fabrication for radius treads and risers
- Heavy-duty shoring for monolithic throat pours
- Complex rebar cage with 1.5″ concrete cover at all radius points
- Low-slump, high-PSI concrete mix design
- Epoxy-set rebar dowels tying stairs into ICF wall cores
- Hand-finished treads and risers to architectural-grade smoothness
Plumbing Systems
Villa Boucetta’s plumbing infrastructure is designed for a high-performance luxury residence:
- 120-Gallon Commercial Heat Pump Water Heater with vibration isolation and seismic strapping
- 3-Speed circulator pump for instant-hot water delivery throughout the home
- Type L copper or PEX-a main distribution lines
- 12,000-gallon water storage tank
- 3/4 HP cast iron submersible sump pump system
- 3″ rainwater roof drainage system
- Full ICF penetration coordination with concrete crew
- Rough-in for all bathrooms, kitchens, laundry, and outdoor kitchens
- 5-PSI air test on waste/vent lines + 100-PSI hydrostatic test on supply lines
Electrical Systems
The electrical scope at Villa Boucetta is engineered for a modern luxury estate with future-forward capabilities:
- Full service entrance and power distribution per electrical single-line drawing
- Heavy-duty disconnects for all major mechanical equipment
- Pre-pour conduit coordination through all ICF walls and slabs
- ICF-rated electrical boxes secured to foam forms
- Watertight floor boxes in Insul-Deck and slab-on-grade areas
- Recessed lighting with Insul-Deck-compatible housings
- Art and accent lighting rough-in (picture lights, LED cove channels, toe-kick lighting)
- Dedicated 20A circuits for kitchen appliances, bathrooms, and laundry
- EV charging rough-in for minimum two Level 2 charging stations (50A–60A)
Construction Progress Updates

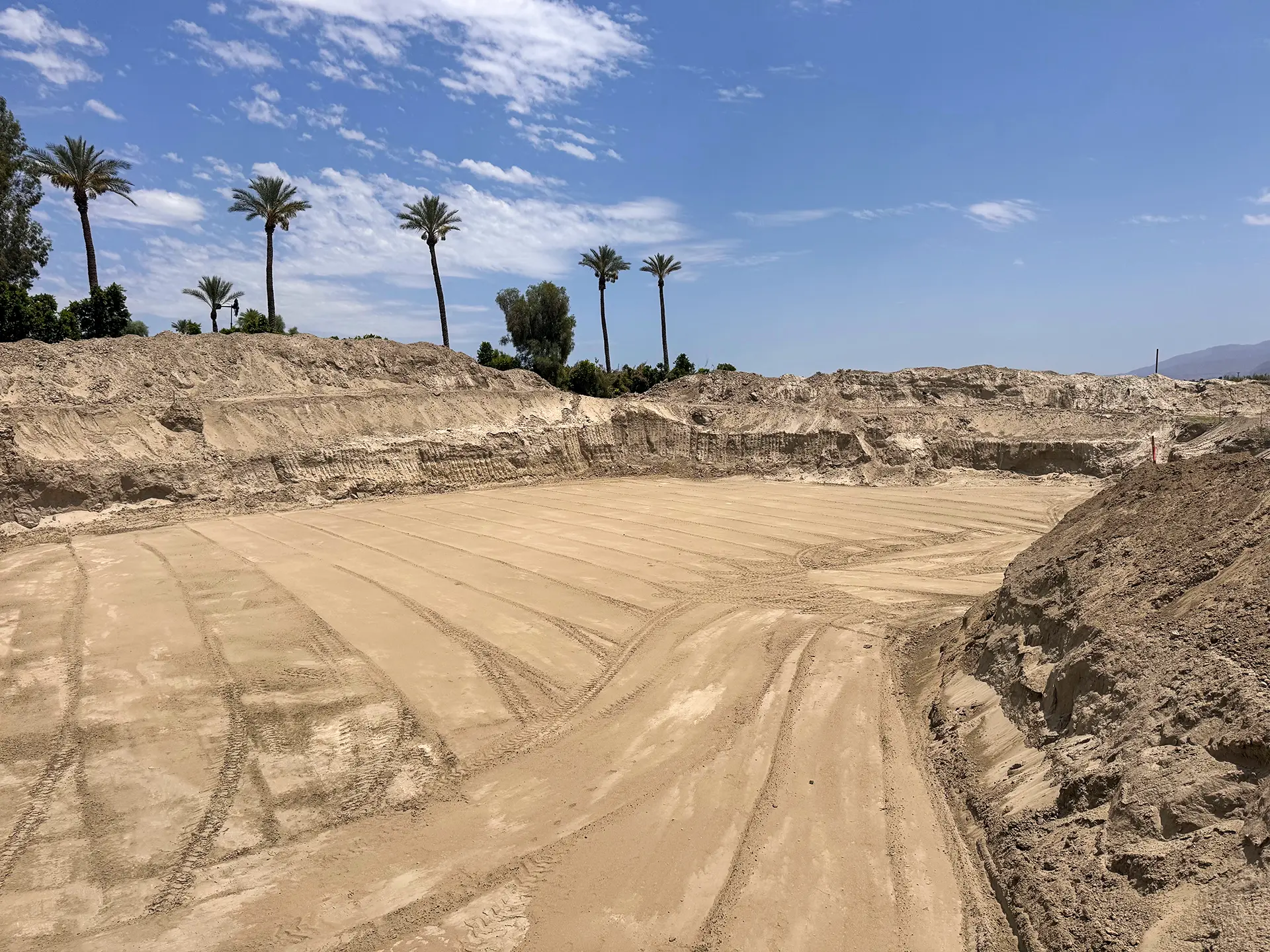

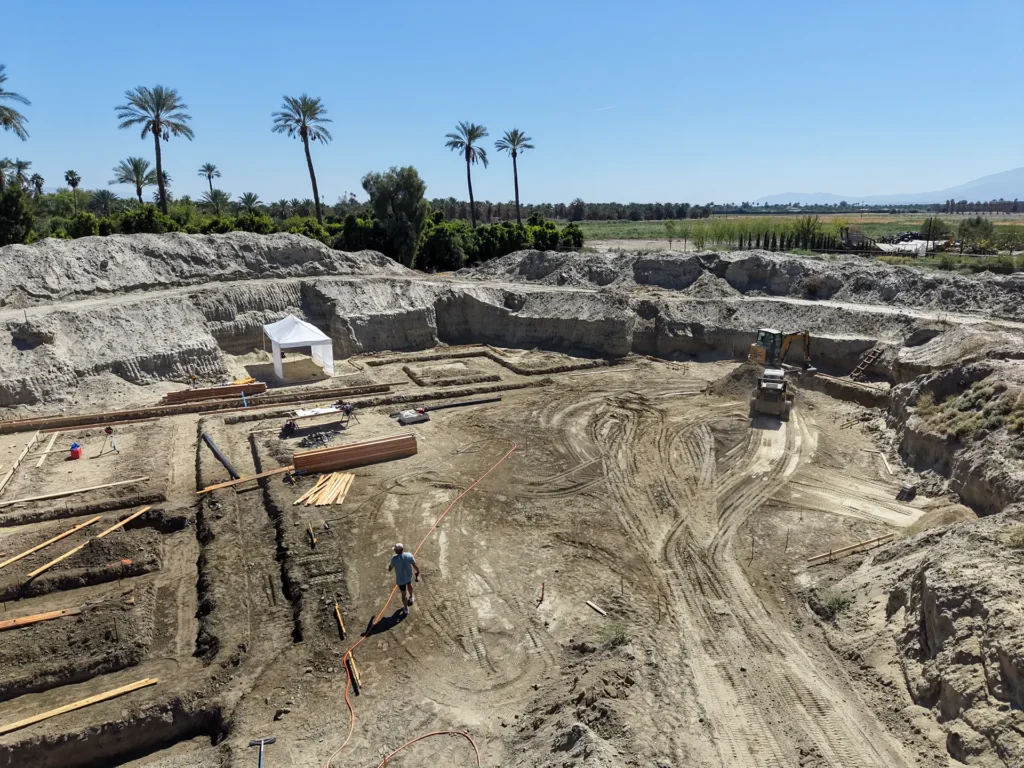

Update #1 — June 2025: Mass Excavation Complete
Photos: June 3, 2025

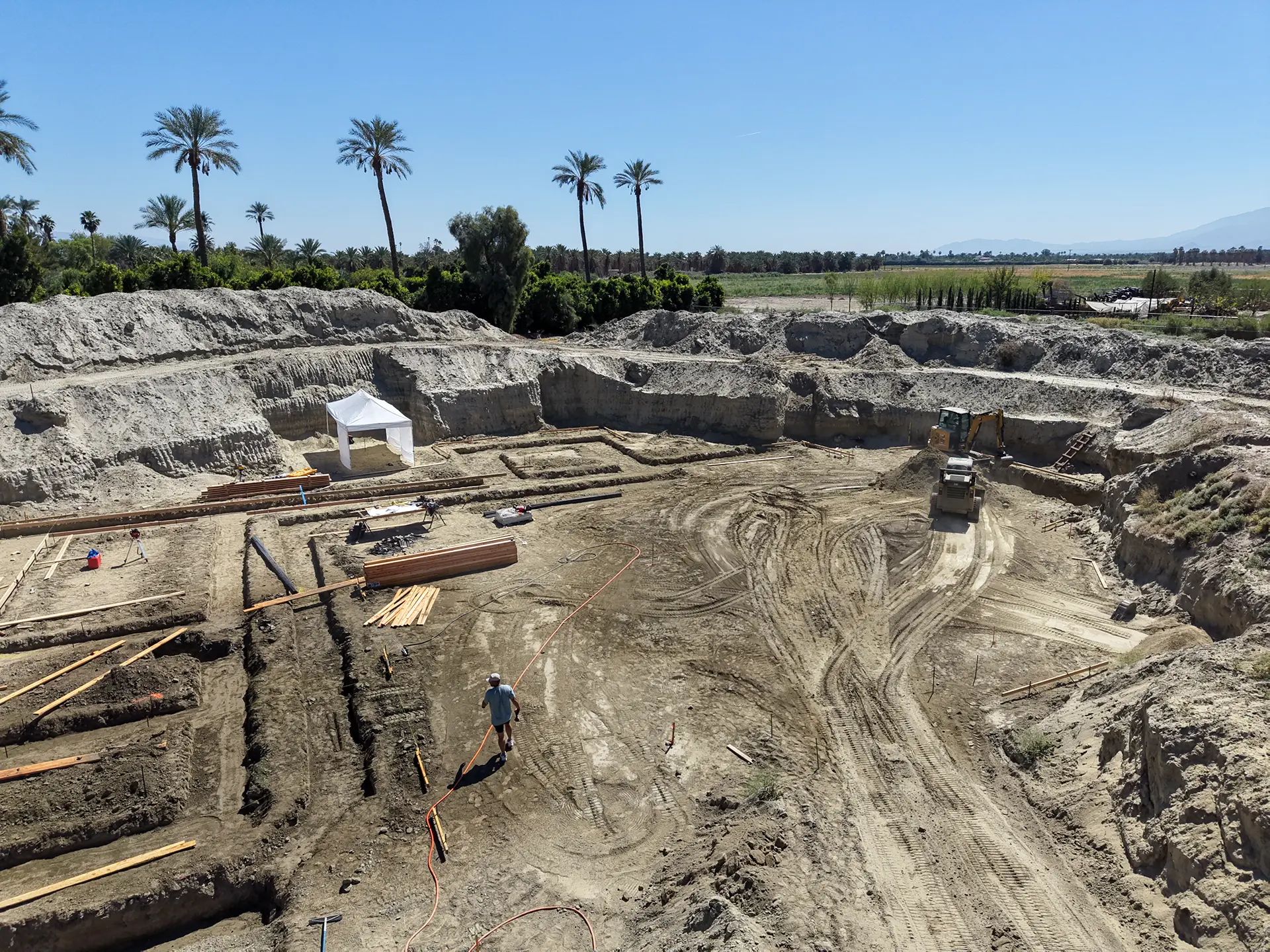

The first major milestone at Villa Boucetta has been achieved: full mass excavation of the building pad. The photos from June 2025 show the dramatic scale of this project — a massive, precisely graded excavation cut deep into the desert soil, with clean, stepped walls and a compacted floor ready for foundation work.
The scale of the excavation reflects the ambition of the design. Earthwork of this magnitude requires careful coordination of heavy equipment, precise grade control, and strategic soil management to ensure the excavated walls remain stable throughout the construction process.
With the site cleared and graded, the stage is set for the next phase: footing layout, rebar installation, and the first concrete pours.

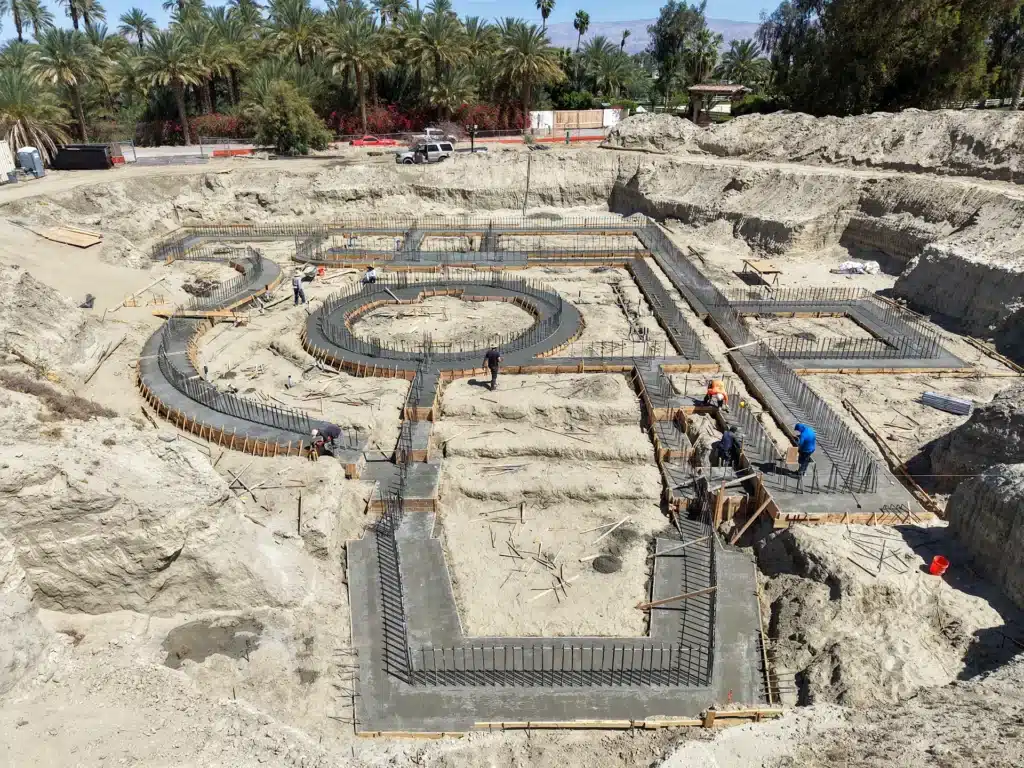

Update #2 — April 3, 2026: Foundation Concrete Pour — Day & Night Operations
Photos: April 3, 2026
Villa Boucetta hit a major construction milestone on April 3, 2026: the foundation concrete pour — and it was a massive, multi-phase operation that ran from sunset well into the night.

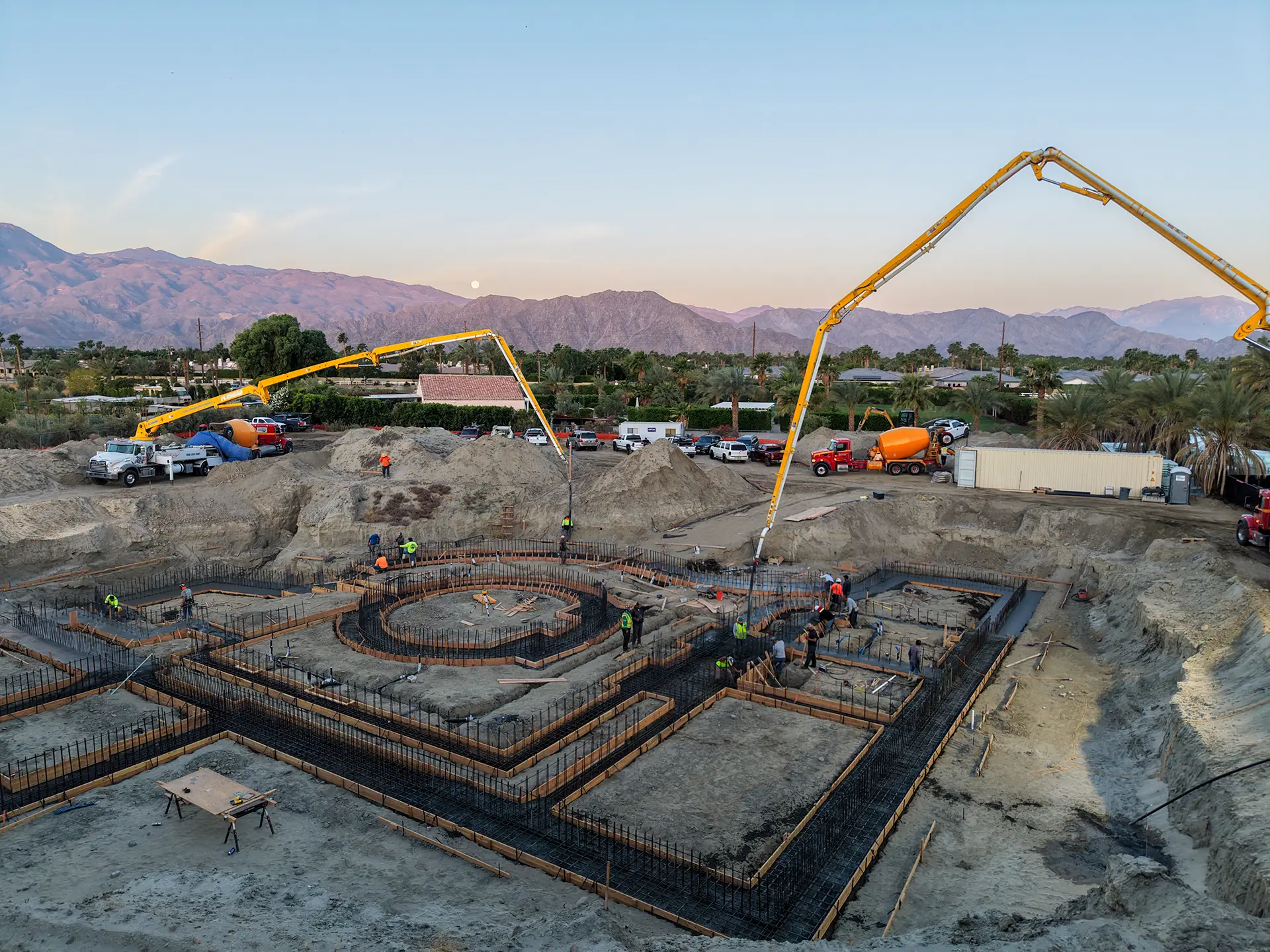

The April 3rd photos capture the full intensity of a large-scale concrete pour in action:

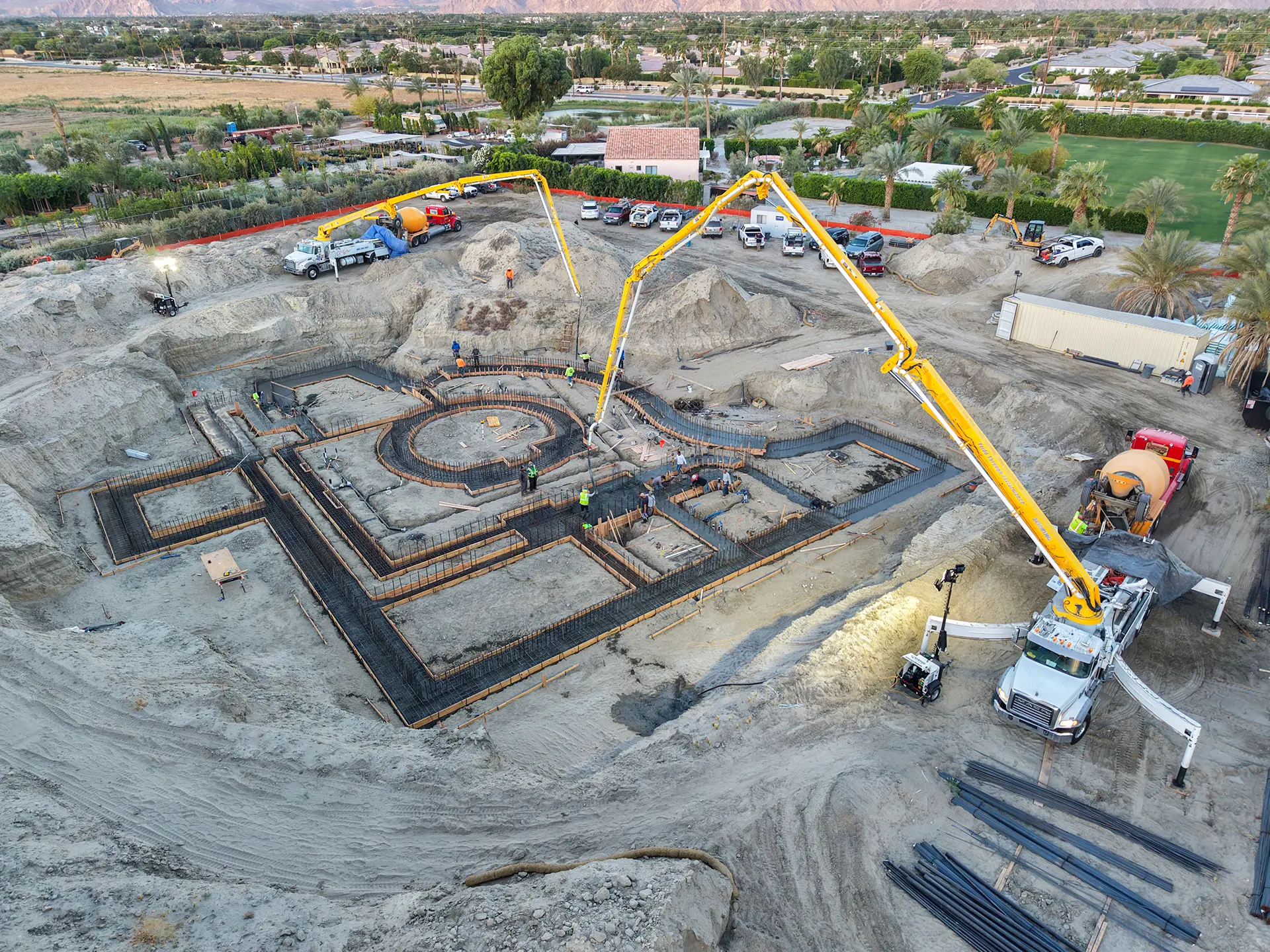

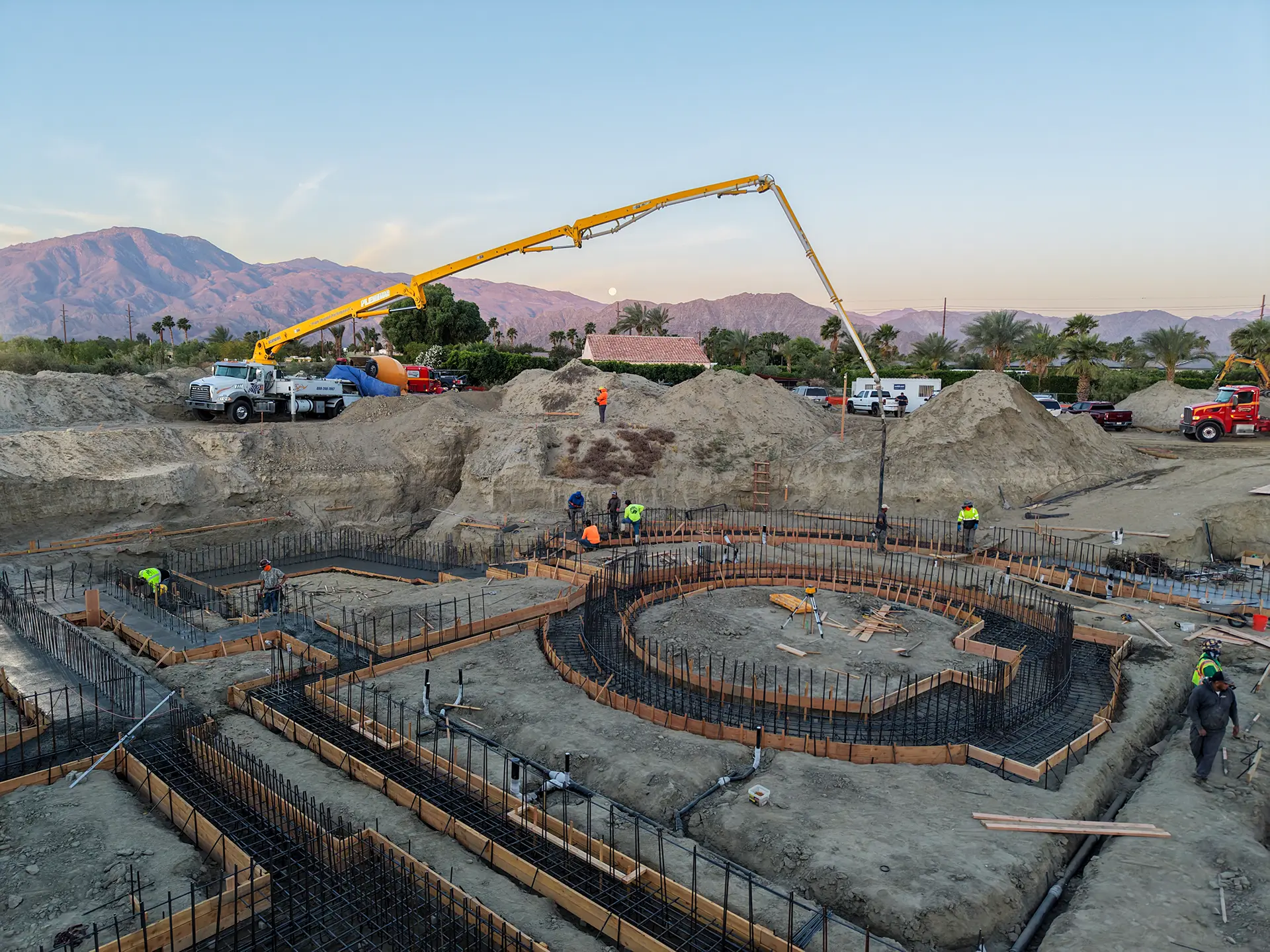

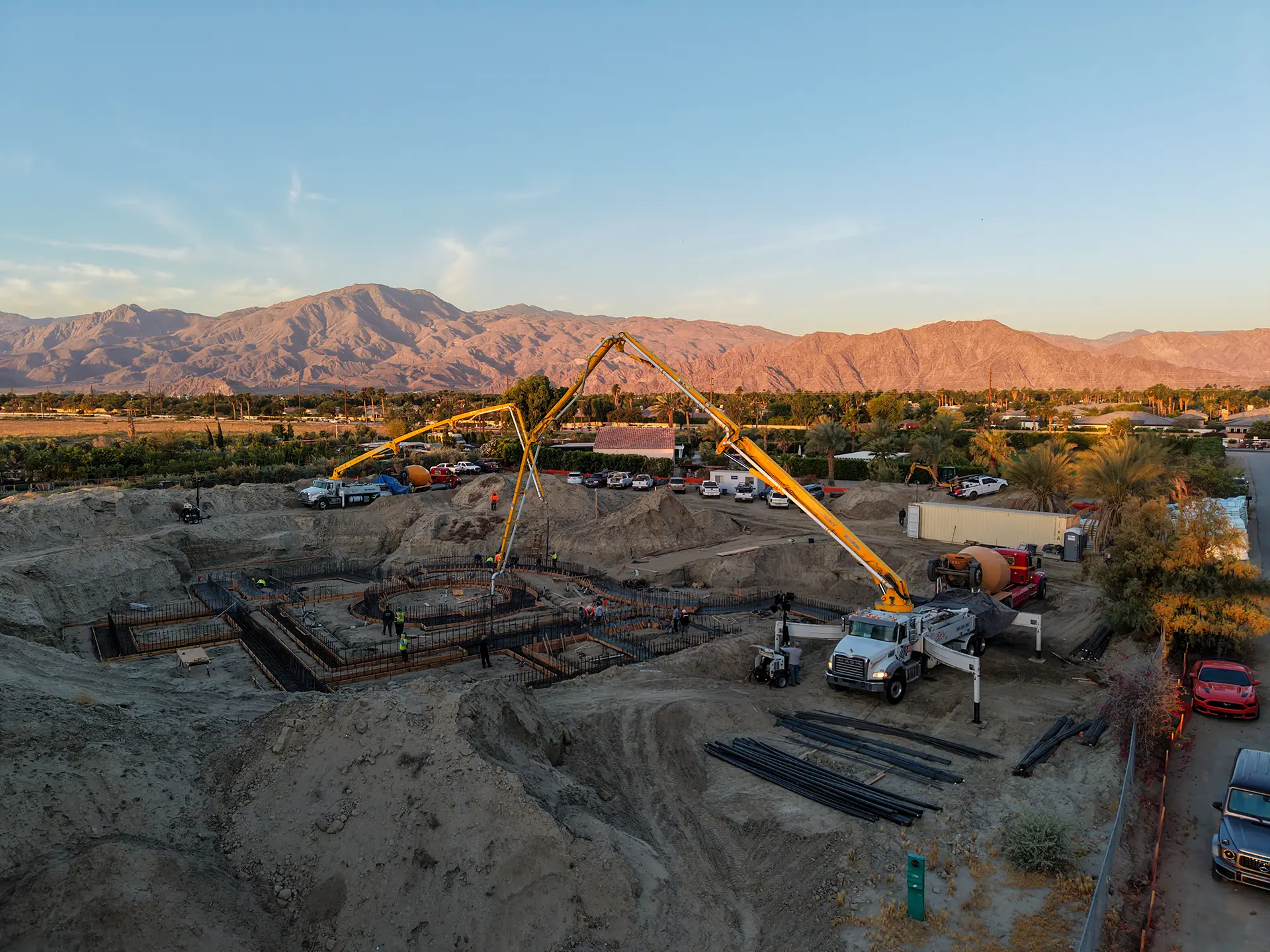

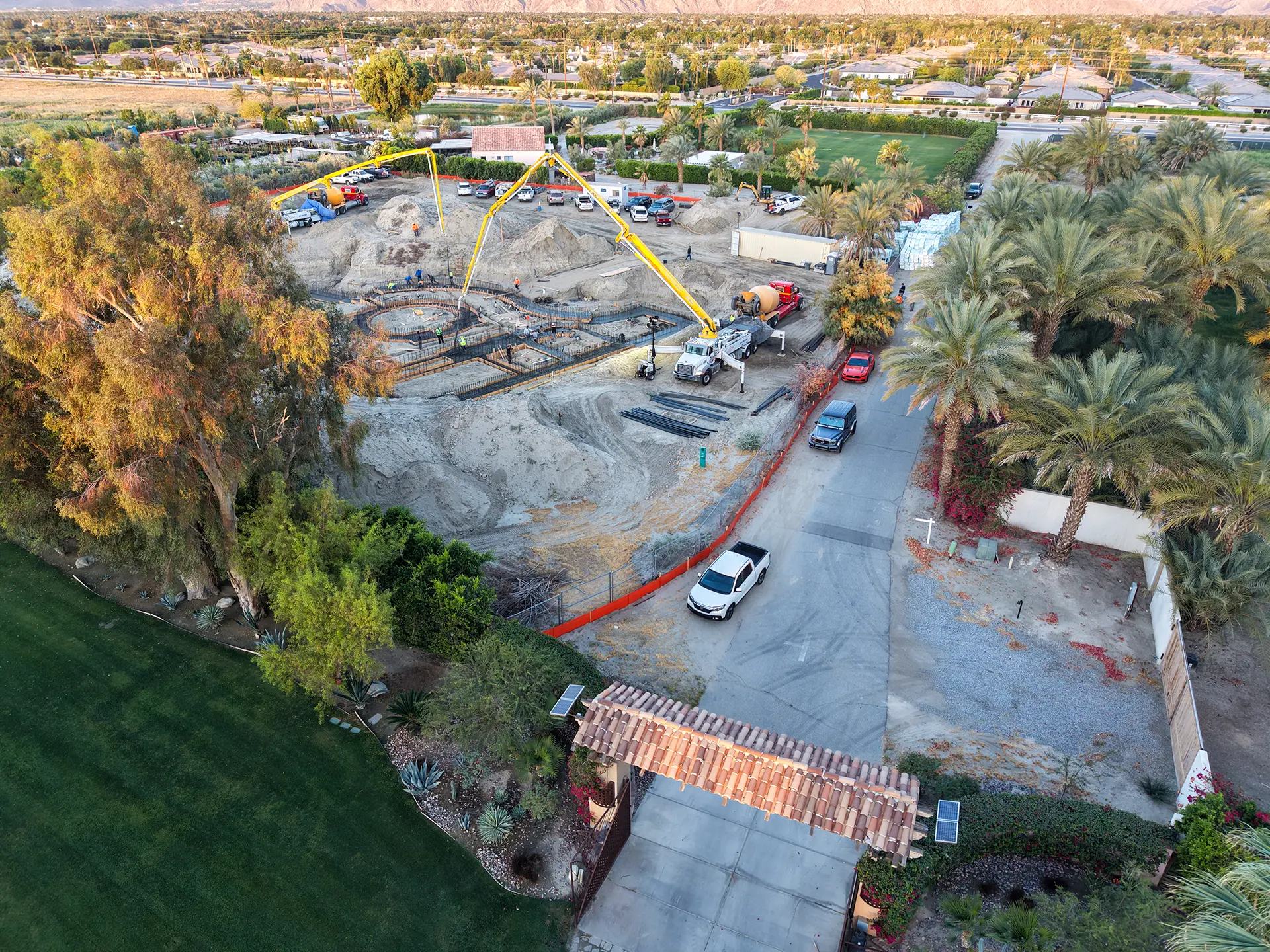

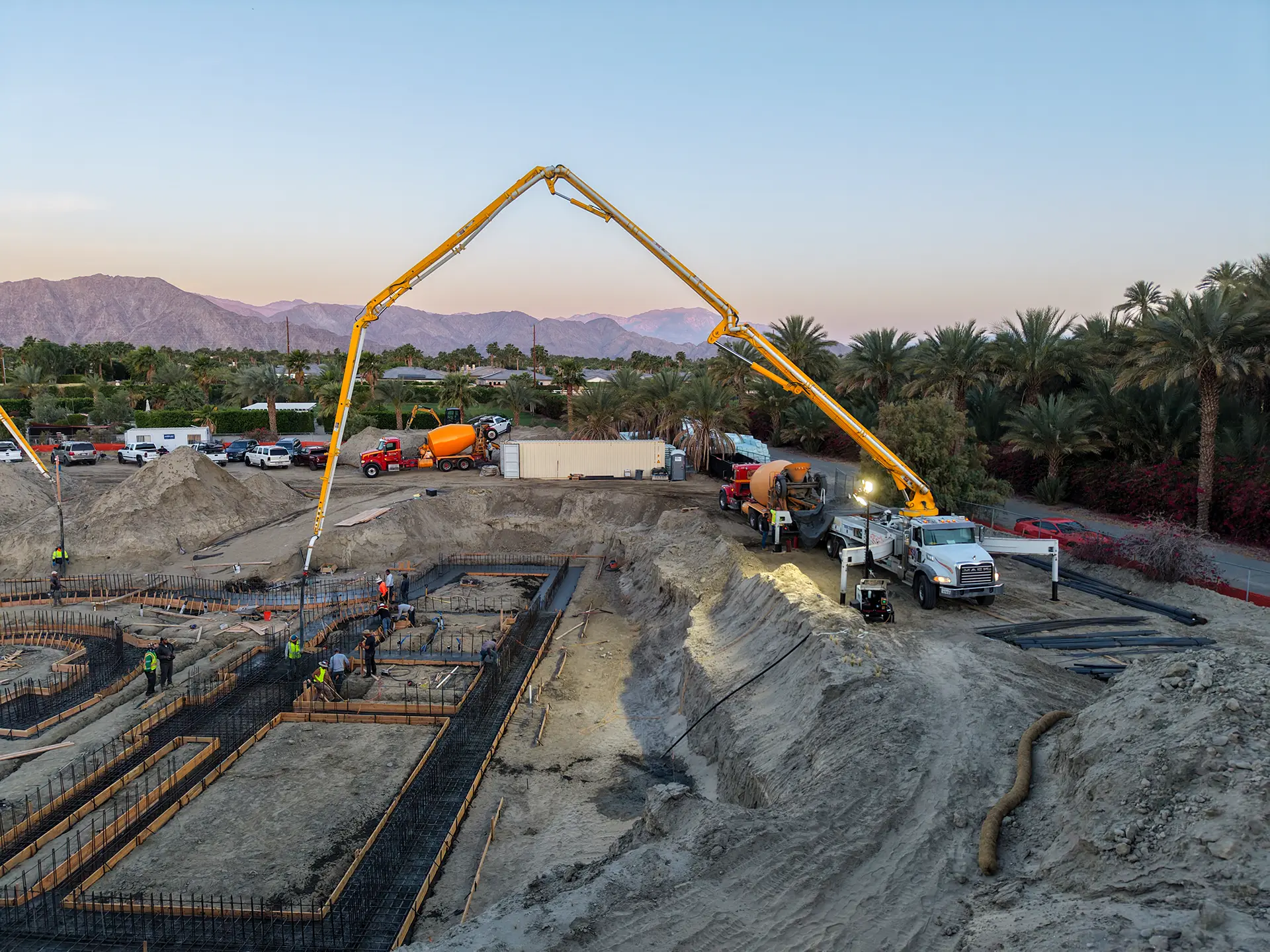

- Two concrete pump trucks operating simultaneously, their yellow booms arcing across the site
- Multiple concrete mixer trucks staged and cycling continuously

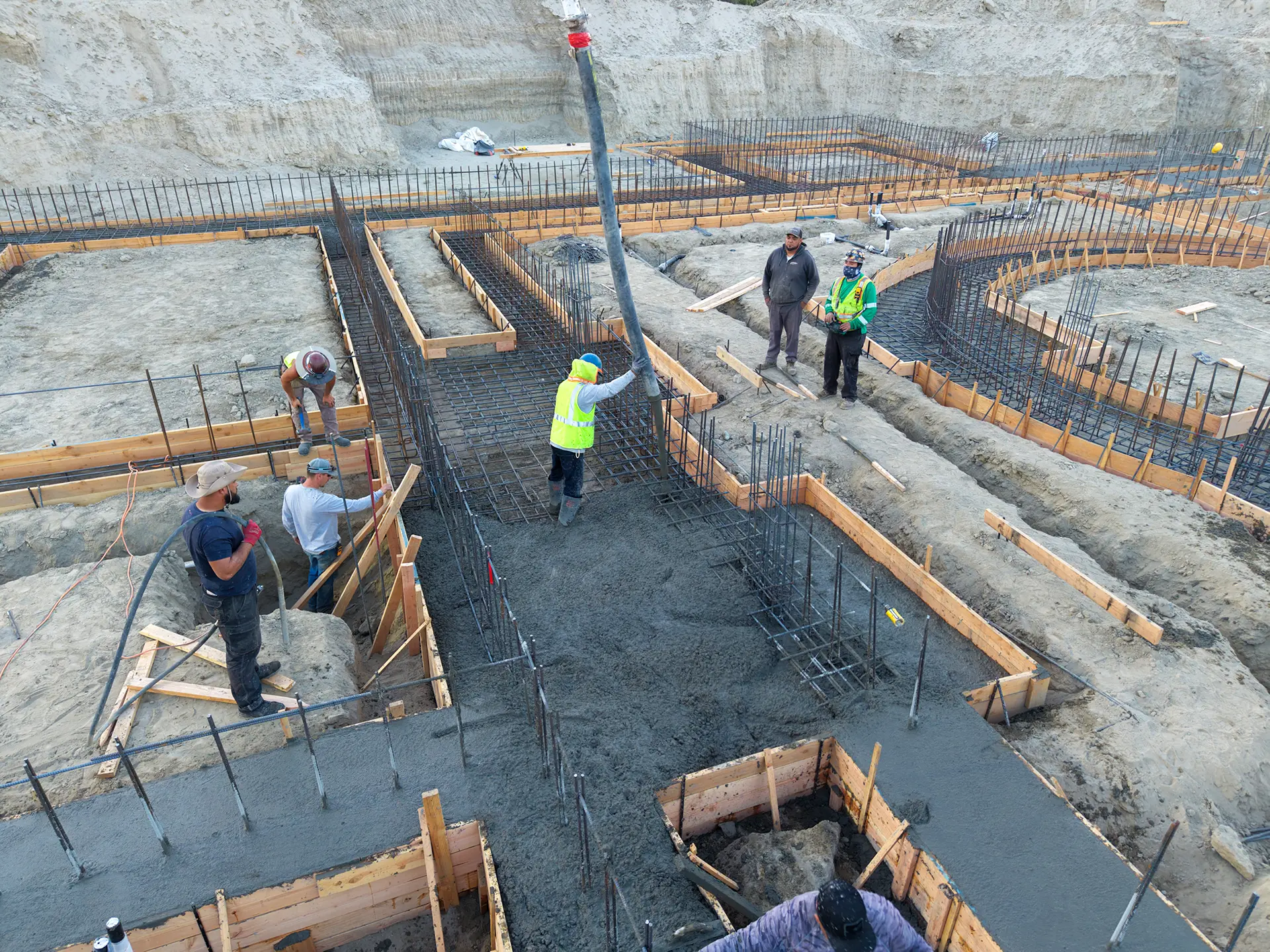

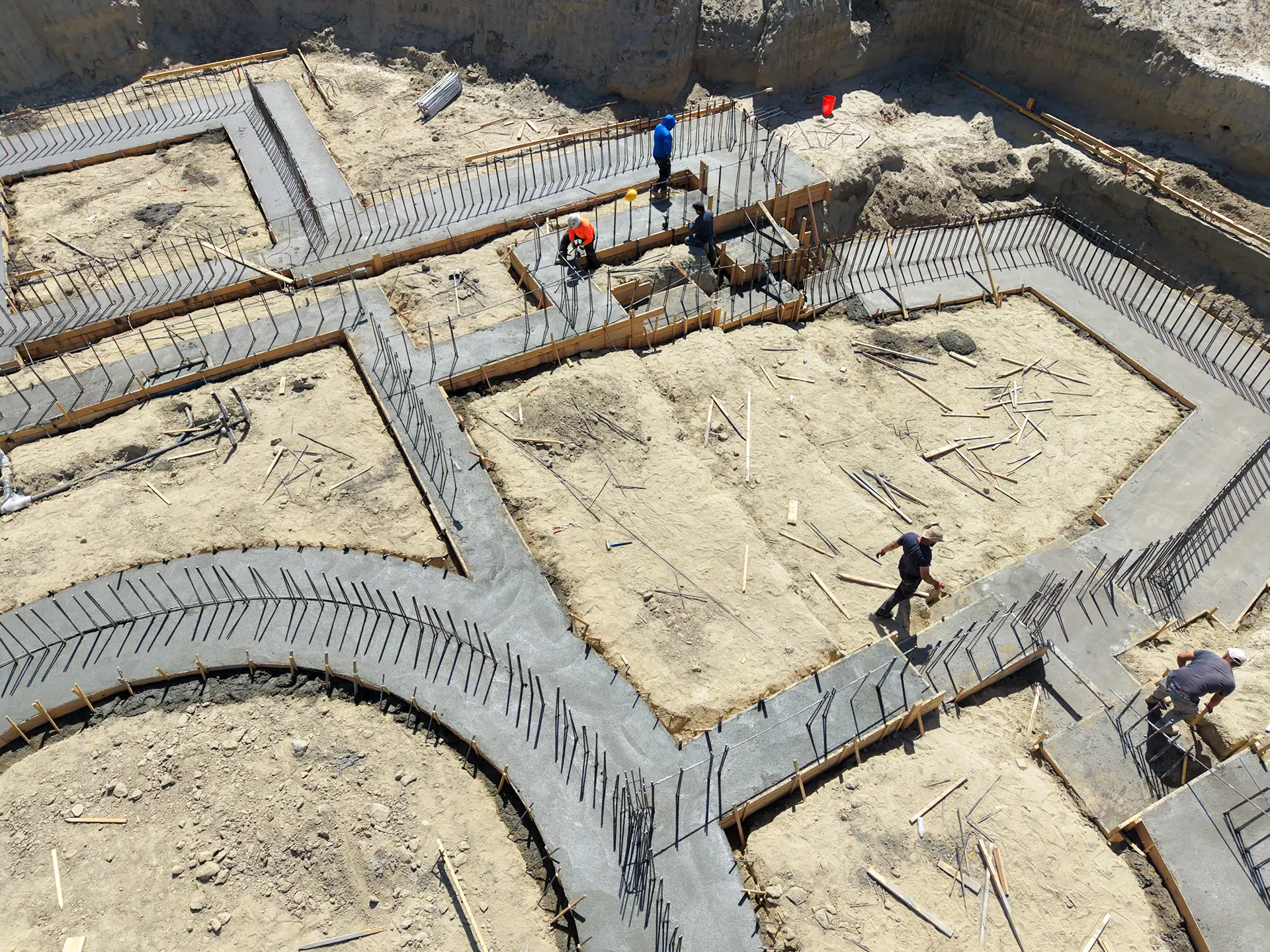

- A full crew of skilled workers managing rebar, forms, and concrete placement across the entire foundation footprint

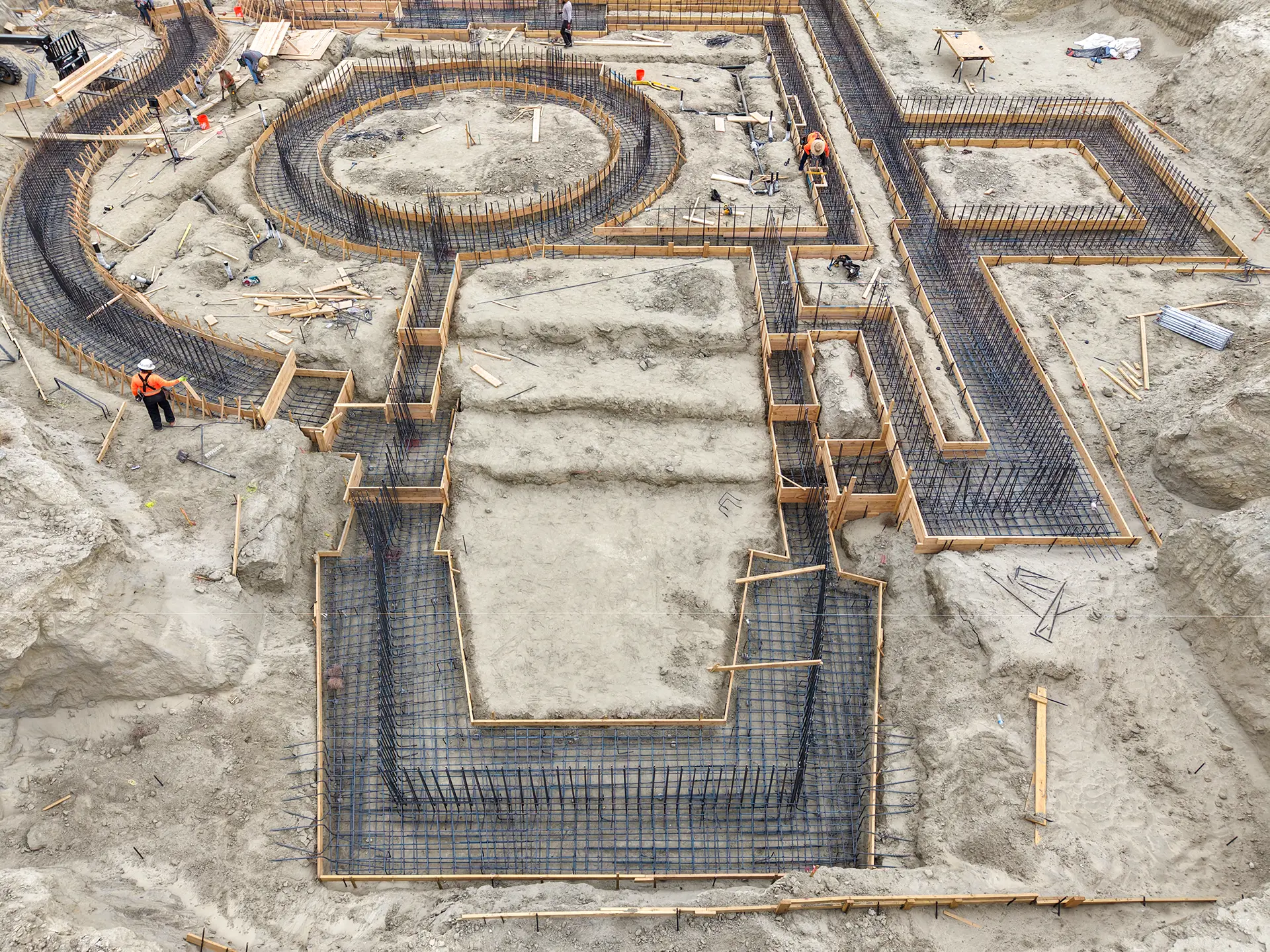

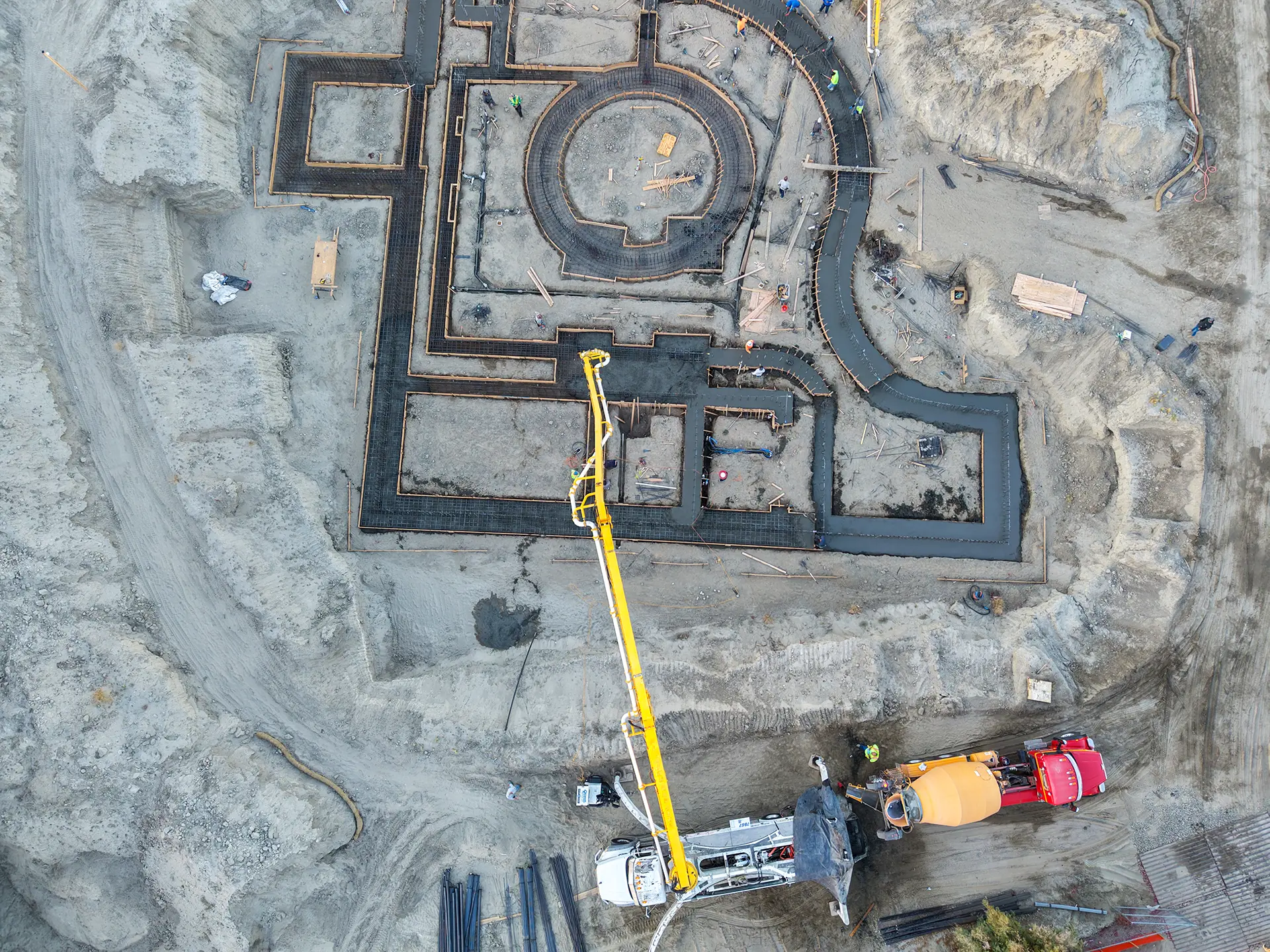

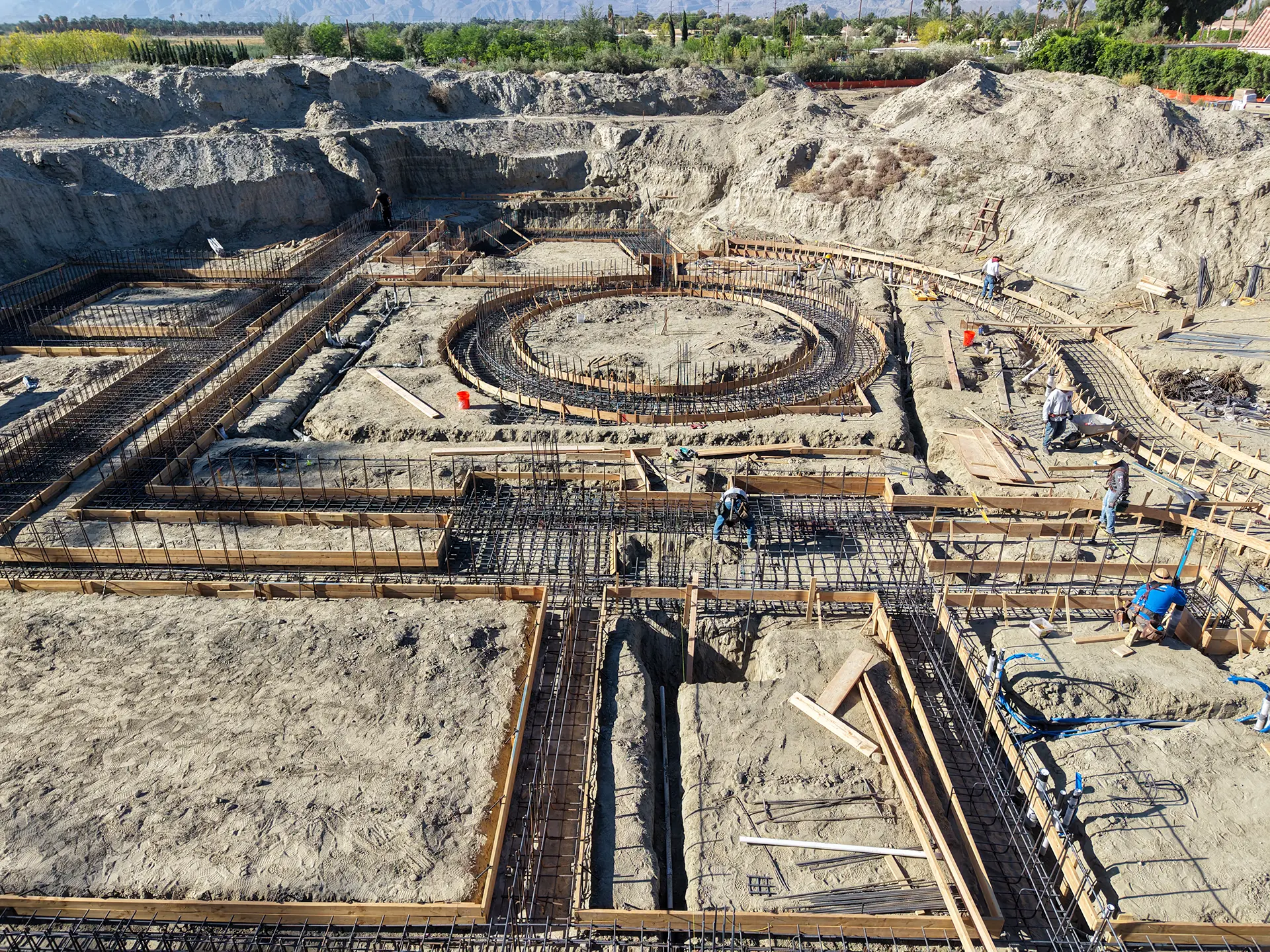

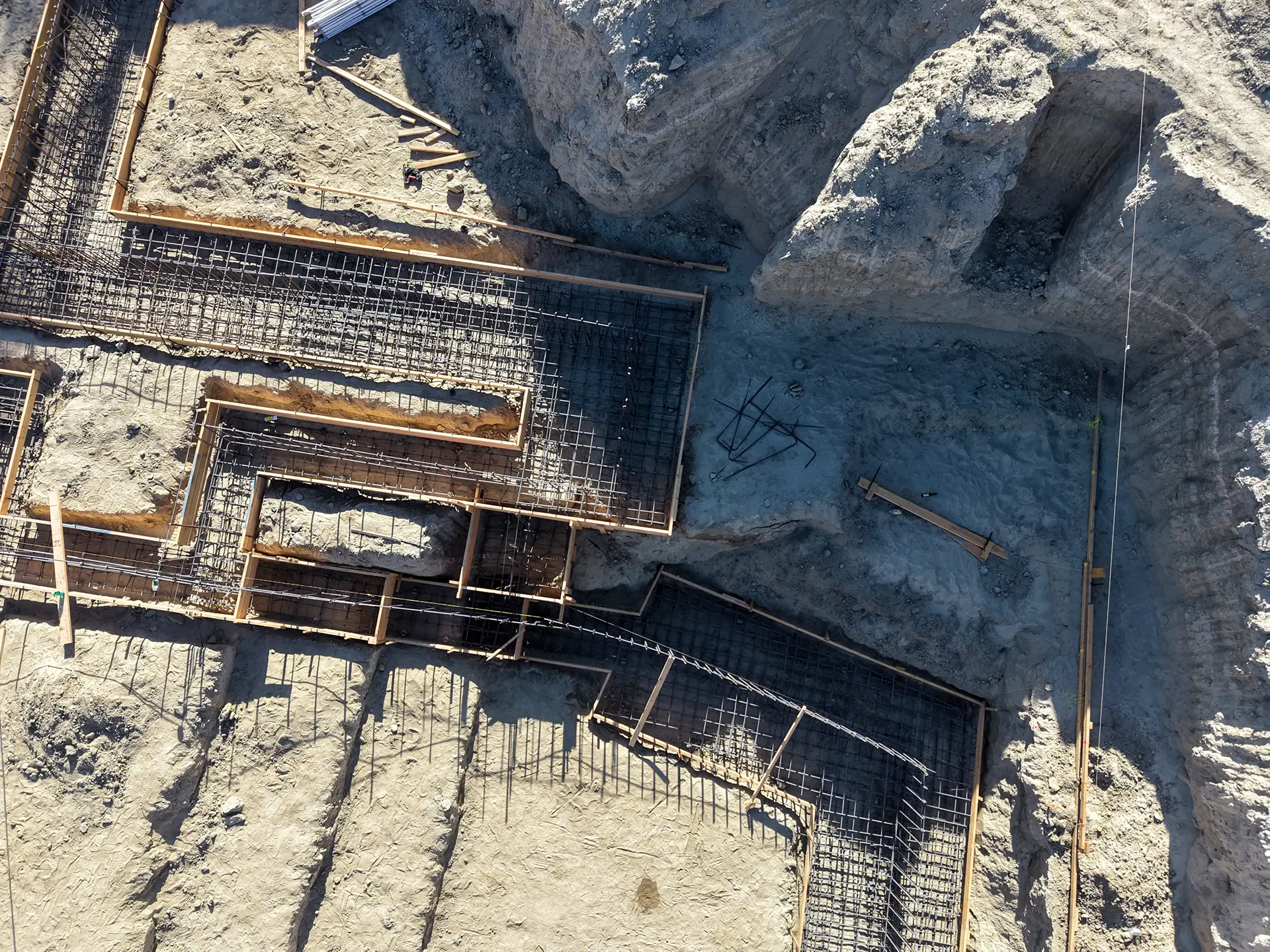

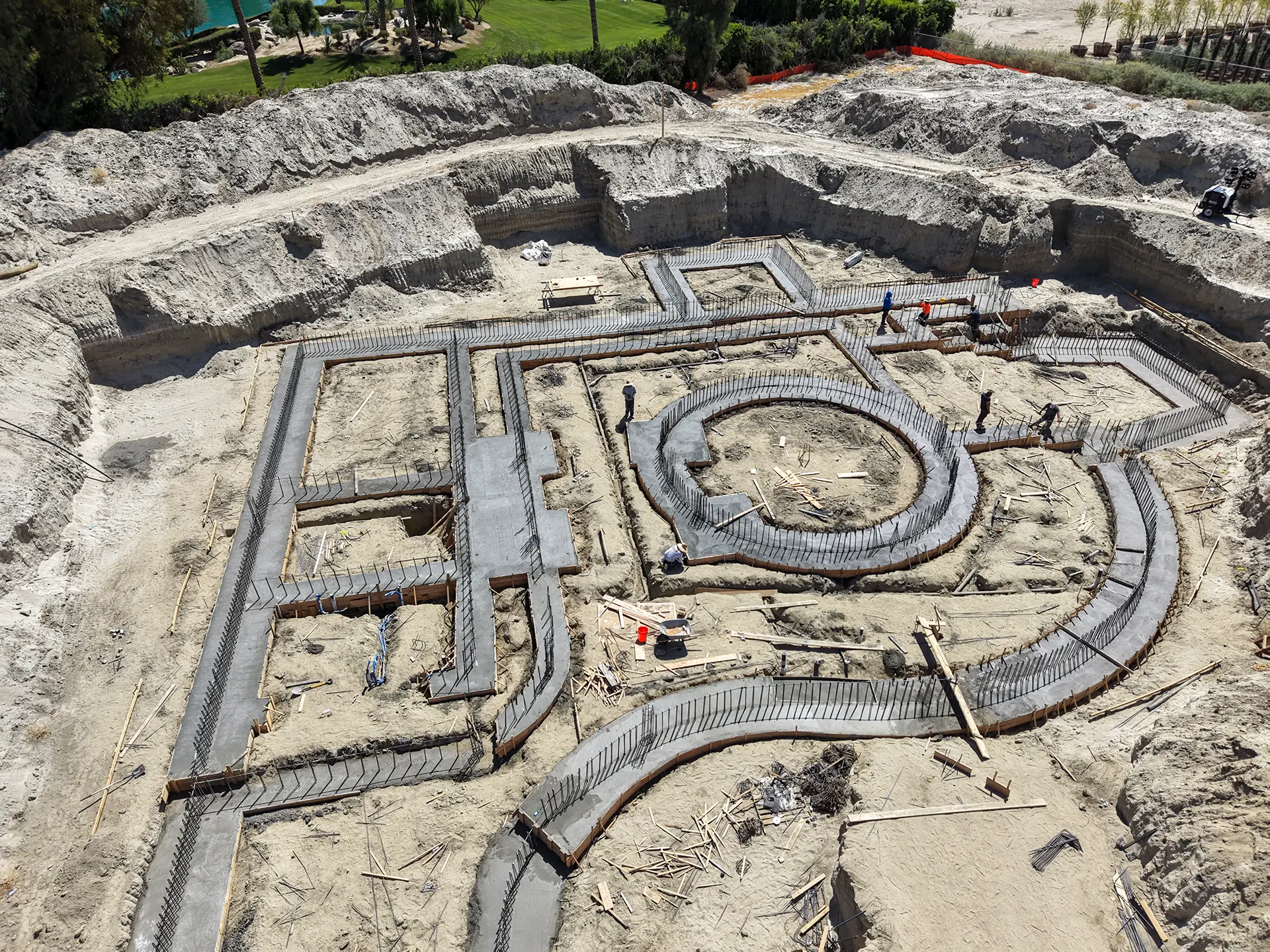

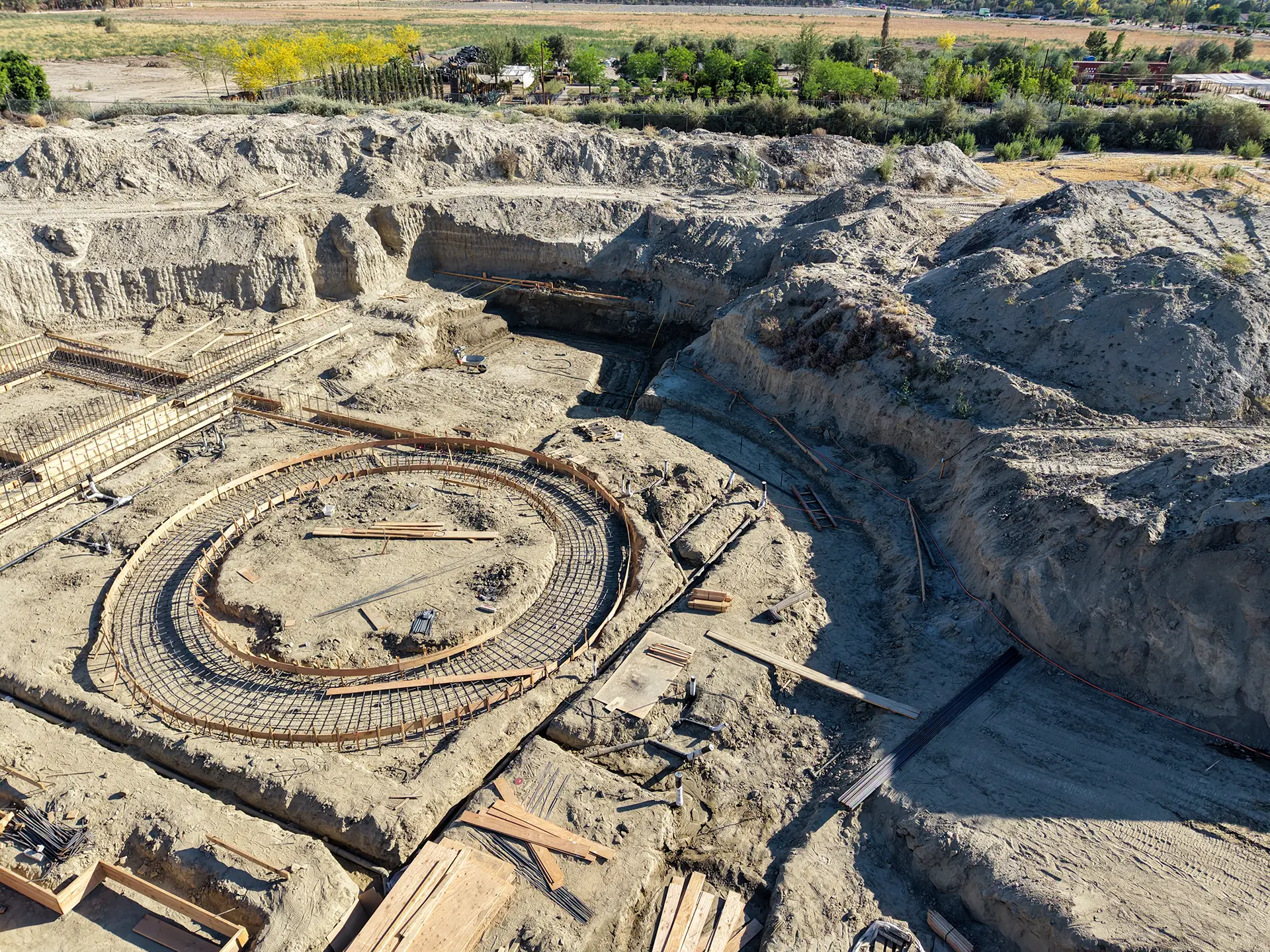

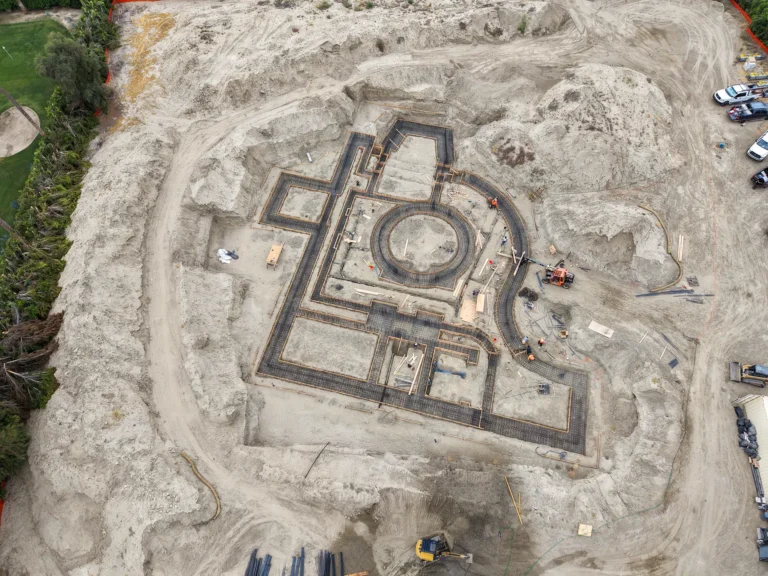

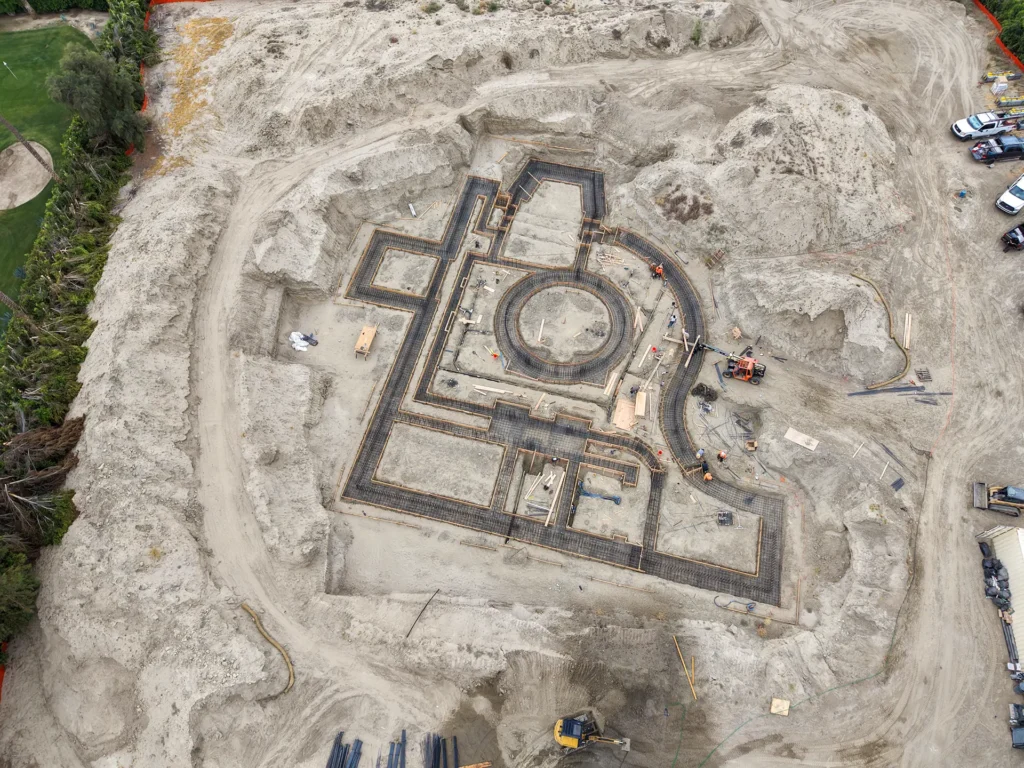

- The distinctive circular and curved footing forms visible from above — a direct reflection of Villa Boucetta’s signature radius architecture
- Night operations under work lights, with crews pushing through to complete the pour in a single continuous operation

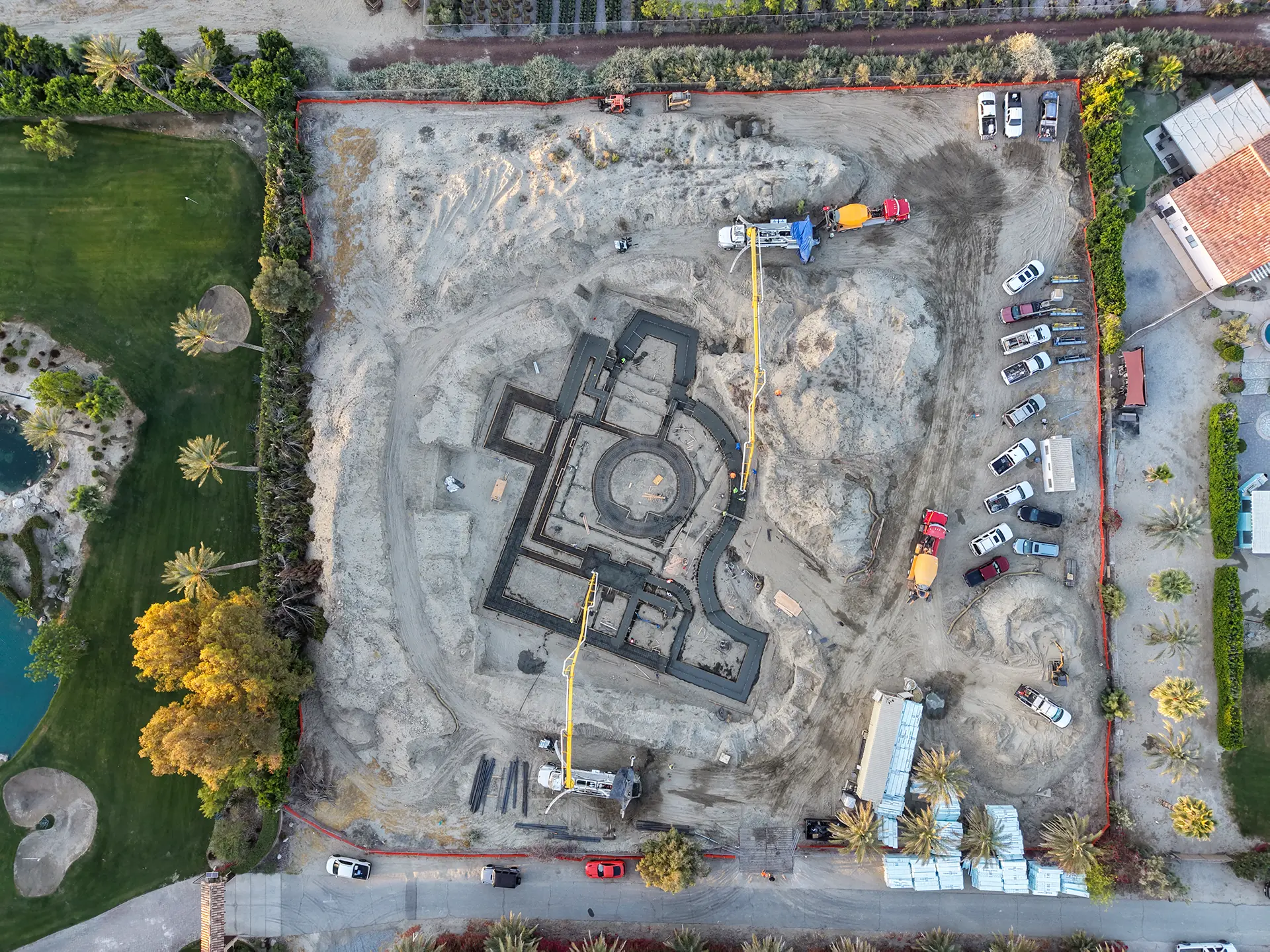

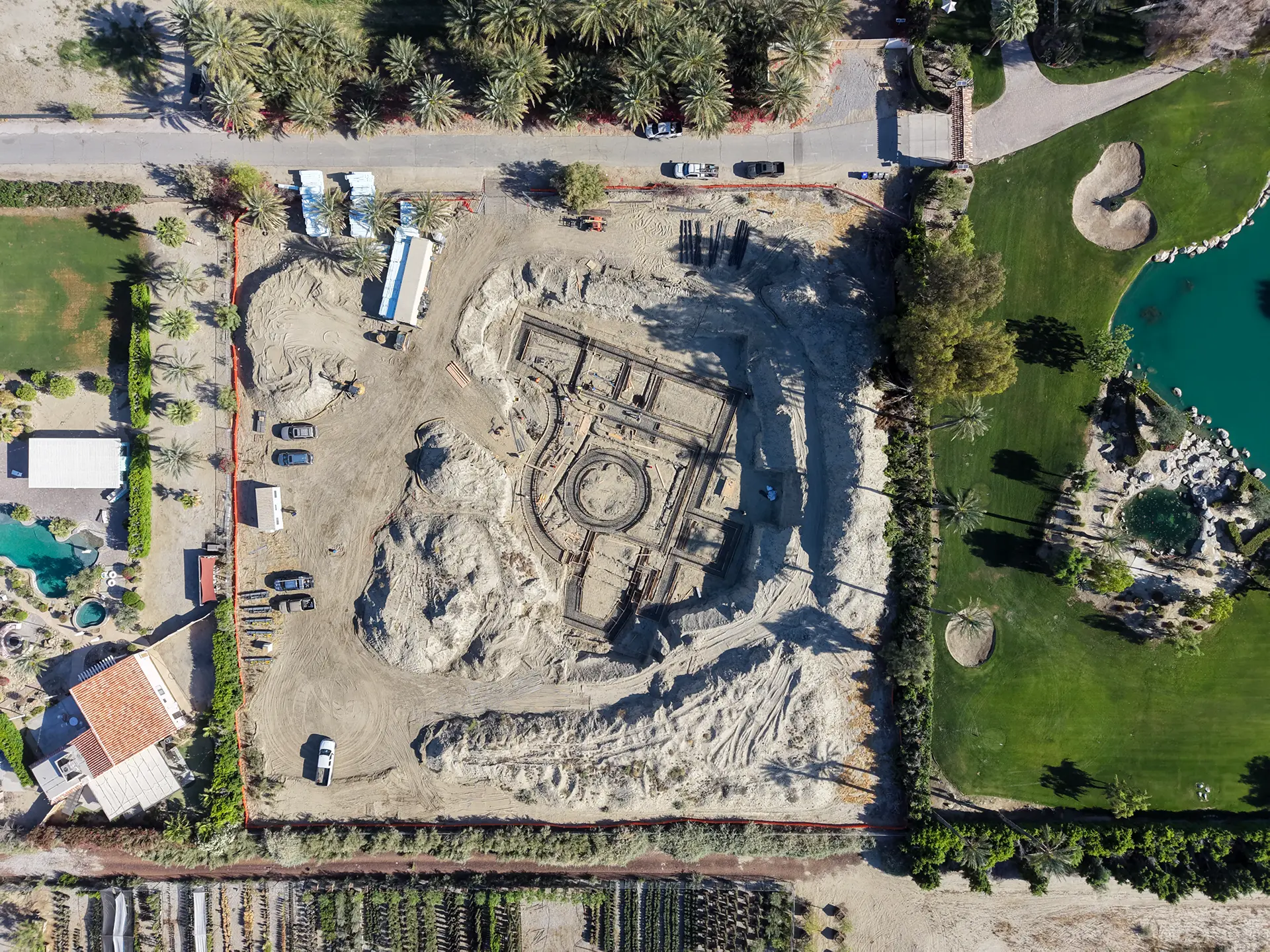

The aerial security camera footage (Eufy Security, timestamped 7:59 AM, April 3, 2026) shows the full scope of the foundation layout — a complex, multi-zone footprint with curved walls, rectangular pad sections, and the intricate rebar grid that will anchor the ICF walls above.
This pour represents one of the most critical milestones in the entire project. The foundation is the backbone of everything that follows — and at Villa Boucetta, it was executed with precision, coordination, and the kind of relentless work ethic that defines Tenax Construction.
Why Tenax Construction for Your Luxury ICF Home?
Villa Boucetta is not our first complex ICF project — but it may be our most ambitious. At Tenax Construction, we specialize in high-performance, architecturally complex residential construction that most contractors won’t touch.
Here’s what sets us apart:
✅ ICF Expertise
We don’t just build with ICF — we master it. From standard straight walls to complex multi-radius custom geometries, our team has the skills, tools, and experience to execute ICF construction at the highest level.
✅ Integrated Self-Performance
On a project like Villa Boucetta, we self-perform the concrete, ICF, waterproofing, plumbing, and electrical scopes. This means tighter coordination, fewer delays, and a single point of accountability for the entire structural shell.
✅ Engineering-First Approach
Every decision we make on site is backed by structural engineering. We work closely with engineers and architects to ensure that complex details — radius walls, stepped footings, Insul-Deck connections — are executed exactly as designed.
✅ Transparency & Communication
We document our projects thoroughly — from security camera feeds to on-site photography — so our clients always know exactly where their project stands. This portfolio article is just one example of how we keep stakeholders informed and engaged throughout the build.
✅ Licensed & Insured in California
Tenax Construction Inc. holds California Contractor’s License #1057033. We are fully licensed, bonded, and insured for projects of any scale across the state of California.
Project Timeline
| Phase | Status |
|---|---|
| Contract Executed | ✅ March 5, 2026 |
| Site Mobilization | ✅ Complete |
| Mass Excavation | ✅ Complete — June 2025 |
| Well Drilling | 🔄 In Progress |
| Concrete Footings | 🔄 In Progress — Major Pour April 3, 2026 |
| ICF Concrete Walls | 🔄 Upcoming |
| Waterproofing | ⏳ Scheduled |
| Insul-Deck Floor System | ⏳ Scheduled |
| Concrete Staircases | ⏳ Scheduled |
| Plumbing Rough-In | ⏳ Scheduled |
| Electrical Rough-In | ⏳ Scheduled |
| Substantial Completion | ⏳ TBD |
This page will be updated as construction progresses. Check back for new photos and milestone updates.
